Customized Size Aluminum Sliding Door and Windows with Built-In Blinds in French Style
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | MINYE |
| Model Number: | Lin-16102728 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | $115.00/square meters 10-49 square meters |
| Packaging Details: | 1.Small goods will be packed on steel pallet or plywood box. <br>2.Profile surface will have plastic film cover, <br>3.window and door corner would be protected by paper corner gloves. <br>4.Packing belt will hold goods fasten on the pallet. <br>5.Stre |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Door Material: | Aluminum Alloy | Screen Netting Material: | FiberGlass |
|---|---|---|---|
| Warranty: | 5 Years | Feature: | Sound Insulation |
| Surface Finishing: | Finished | Opening Method: | Manual |
| Door Type: | Glass | After-sale Service: | Online Technical Support |
| Project Solution Capability: | Total Solution For Projects | Application: | Office Building, House |
| Design Style: | French | Type: | Entrance Doors |
| Material: | Aluminum Alloy+Tempered Glass+Hardware | Position: | Exterior Entrance Door |
| Open Style: | Sliding Slider | Hardware: | Chinese Top Brand |
| Size: | Customized Size | Color: | Customized Color |
| Glass: | Double Tempered Glass | Style: | Luxury Modern |
| Port: | Shanghai | ||
Product Description
main product

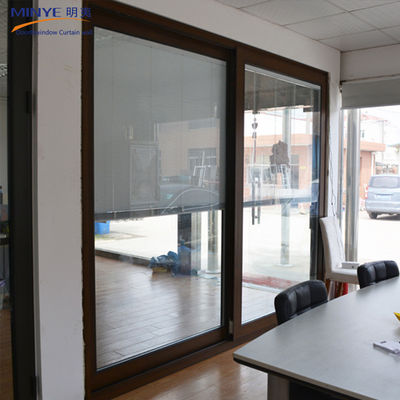

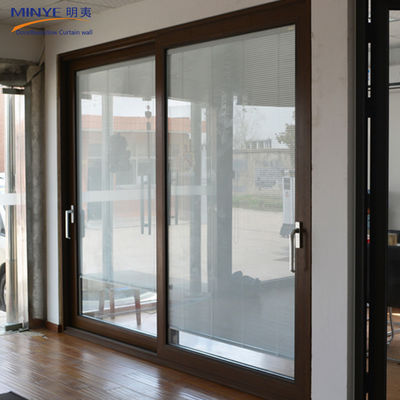

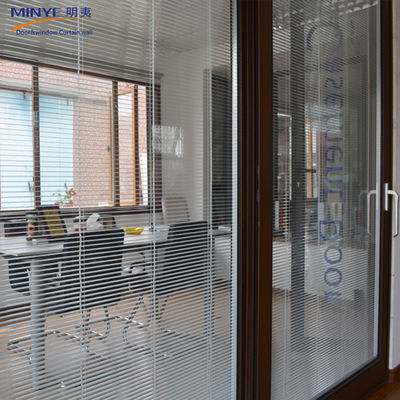

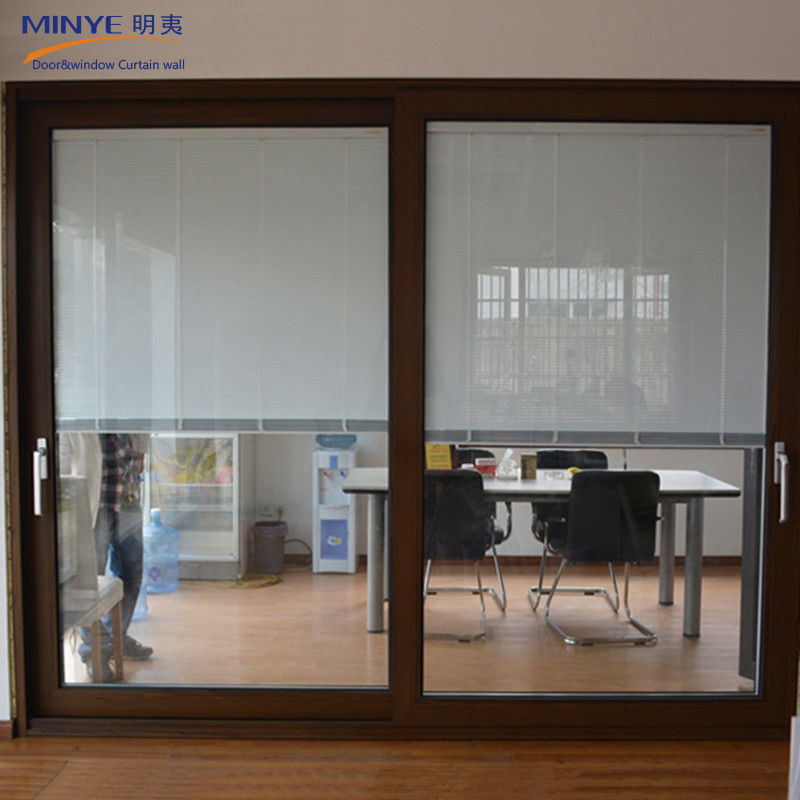

PRODUCT DISPLAY
| Item | French style aluminum big lift up sliding door roll shutter inside for meeting room |
| Profile | 1.6063-T5/T6 normal aluminum,thermal break aluminum 2.pvc/upvc/VINYL(China top brand CONCH/German Brand REHAU/Korea brand LG)
|
| Glass | 1.Double tempered glazing:5mm+12A(Air)+5mm; 5mm+12A+5mm tinted; 5mm+12A+5mm Low-E; 5mm+27A+5mm 2.Single tempered glazing: 3/4/5/6/8/10/12/15/19/21mm 3.Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm |
| Hardware | 1.German brand: Roto, Siegenia, Geze 2.Chinese brand: Kinlong,Hopo |
| Mesh | 1.Stainless steel security mesh 2.Aluminium security mesh 3.Fiberglass flyscreen 4.Retractable flyscreen |
| Surface treatment | 1.Powder coating 2.Anodized 3.Electrophoresis 4.Wood grain 5.Fluorine carbon coating |
| Parameters | Double glass sliding windows Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450mm N6 CLASS based on AS2047 STANDARD |
| Warranty | Ten years |
PRODUCT PROCESS
PACKING AND LOADING
TYPES OF DOORS&GLASS
COLORS & APPLICATION
CLIENTS&CERTIFICATES
Want to Know more details about this product
