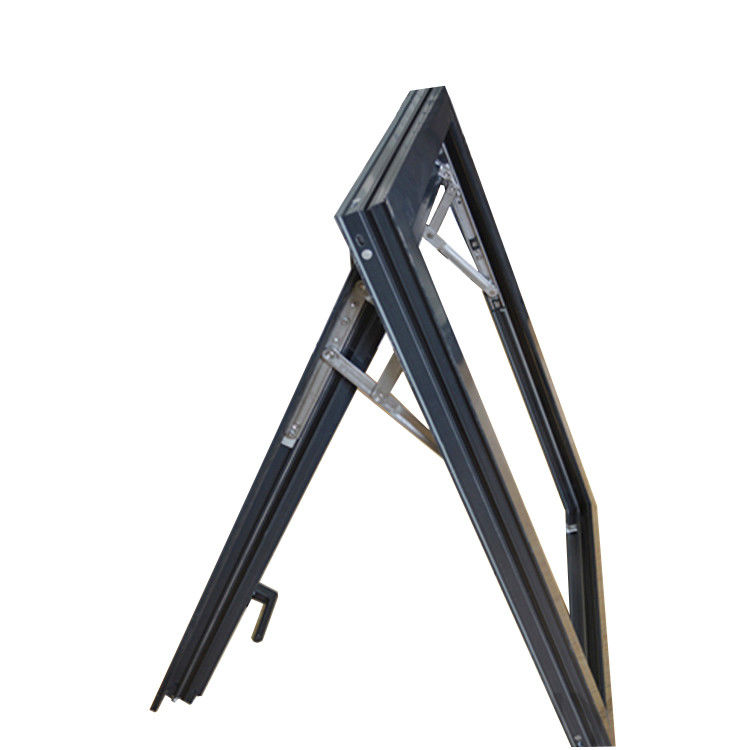

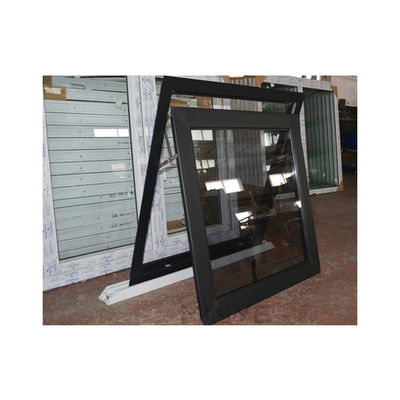

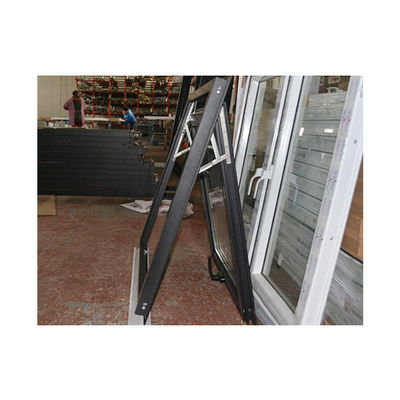

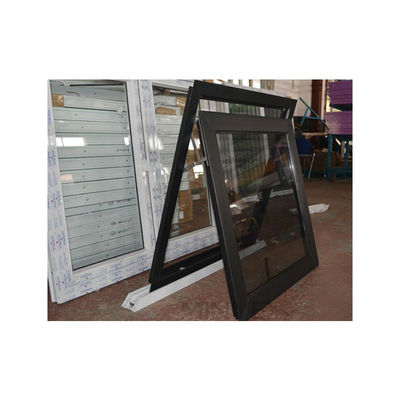

Aluminum Alloy Frame 14- Vertical Slide Sash Window with Australian Standard Grilles
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Minye |
| Certification: | ISO9001 |
| Model Number: | WSF-010 |
Payment & Shipping Terms:
| Price: | $50.00 - $70.00/square meters |
|---|---|
| Packaging Details: | Packaging Details: <br>1.Small goods will be packed on steel pallet or plywood box. <br>2.Profile surface will have plastic film cover, <br>3.aluminum window and door corner would be protected by paper corner gloves. <br>4.Packing belt will hold goods f |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Frame Material: | Aluminum Alloy | Opening Pattern: | VERTICAL |
|---|---|---|---|
| Screen Netting Material: | FiberGlass | Warranty: | 5 Years, 6-10 Years |
| Feature: | Magnetic Screen | Open Style: | Sliding |
| After-sale Service: | Online Technical Support | Project Solution Capability: | Graphic Design |
| Material: | Aluminum Alloy+Glass+Accessories | Surface Treatment: | Wood Transfer Grain |
| Profile Thickness: | 1.4mm-2.0mm | Glass: | 5mm+12A+5mm |
| Hardware: | China Or Germany Brand | Style: | Grids |
| Packing: | Wooden Box+Bubble Film | Sealing: | EPDM Rubber Strips |
| Port: | Shanghai | ||
Product Description
Double Glazing Up and Down Slide Window Aluminum Single Hung Window For Sale
| Item | Double Glazing Up and Down Slide Window Aluminum Single Hung Window For Sale |
| Profile | 1.6063-T5/T6 normal aluminum, thermal break aluminum 2.pvc/UPVC/VINYL(China top brand CONCH/German Brand REHAU/Korea brand LG) |
| Glass | 1.Double tempered glazing:5mm+12A(Air)+5mm; 5mm+12A+5mm tinted; 5mm+12A+5mm Low-E; 5mm+27A+5mm 2.Single tempered glazing: 3/4/5/6/8/10/12/15/19/21mm 3.Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm |
| Hardware | 1.German brand: Roto, Siegenia, Geze 2.Chinese brand: Kinlong, Hopo |
| Mesh | 1.Stainless steel security mesh 2.Aluminum security mesh 3.Fiberglass flyscreen 4.Retractable flyscreen |
| Surface treatment | 1.Powder coating 2.Anodized 3.Electrophoresis 4.Woodgrain 5.Fluorine carbon coating |
| Parameters | Double glass sliding windows Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450mm N6 CLASS based on AS2047 STANDARD |
| Warranty | 6-10 years |
