Aluminium Alloy 6063-T5 Customized Size Skylight for Outward Opening Glass Roof Window
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | MINYE |
| Certification: | ISO9001 |
| Model Number: | skylight-2101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 square meters |
|---|---|
| Price: | $60.00 - $80.00/square meters |
| Packaging Details: | Small goods will be packed on steel pallet or plywood box. Profile surface will have plastic film cover, aluminum window and door corner would be protected by paper corner gloves. Packing belt will hold goods fasten on the pallet. Stretch wrap will be used |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Frame Material: | Aluminum Alloy | Opening Pattern: | Horizontal |
|---|---|---|---|
| Warranty: | 5 Years | Open Style: | Sliding |
| After-sale Service: | Online Technical Support | Project Solution Capability: | Graphic Design |
| Material: | Aluminium Alloy 6063-T5 | Profile Thickness: | 1.4mm |
| Glass: | Double Tempered Glass | Surface Treatment: | Powder Coated Smooth Finished |
| Hardware: | Chinese Top Brand | Rubber Strip: | EPDM |
| Silicone: | Dow Corning | Size: | Customized Size |
| Warranty: | 10 Years | Port: | Shanghai |
Product Description

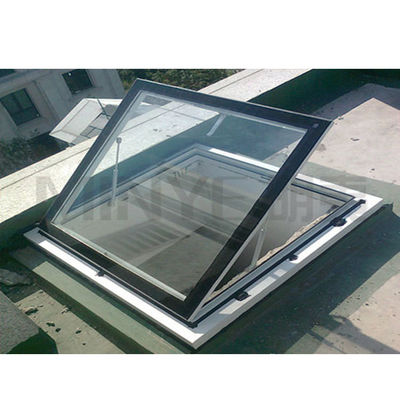

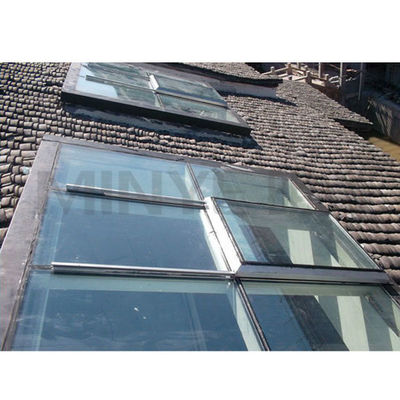

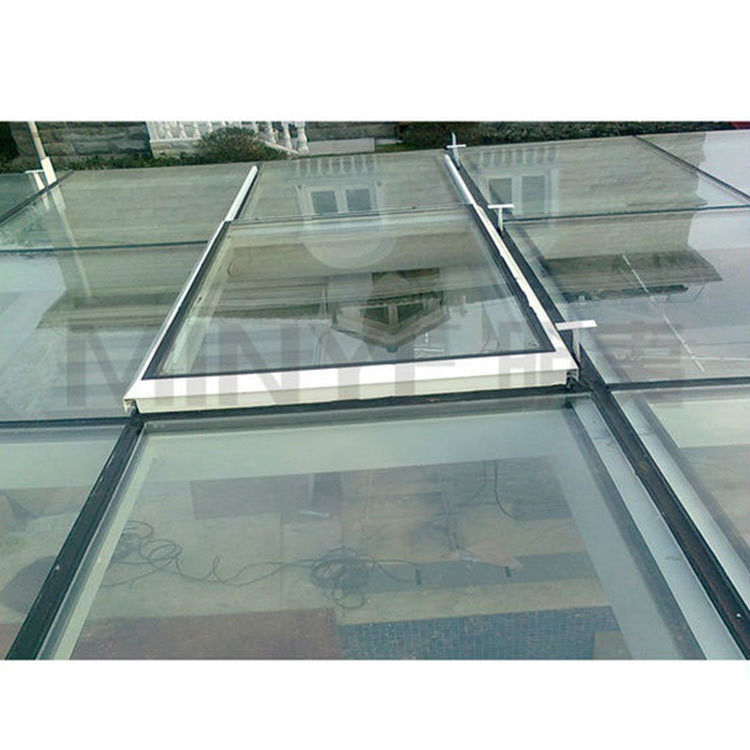

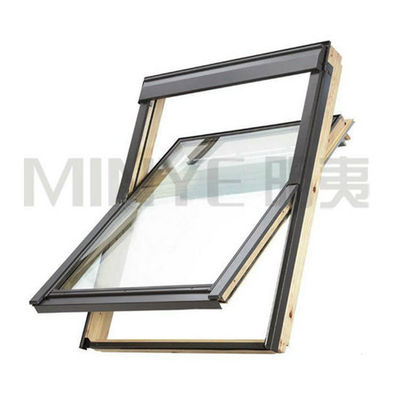

Aluminum profile outward opening glass roof window skylight
Detail
Reference
| Name | Aluminum profile outward opening glass roof window skylight |
| Standard/Certificate | Comply with CE /AAMA |
| Glass Standard | Comply with AS2208 &IGCC/IGMA |
| Extrusion profiles | 6063-T5 aluminium alloy/Conch and Rehau PVC profile |
| Hardware | German/Italy/China |
| Glass type | 1.Double tempered glazing: 5mm+12A(Air)+5mm ;5mm+12A+5mm tinted; 5mm+12A+5mm Low-E; 5mm+27A+5mm 2.Single tempered glazing: 4/5/6/8/10/12/15/19/21mm 3.Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm |
| Surface Finish For Aluminium | Powder coated meet INTERPON, Electrophoresis Flucarbon,Anodizing Wood garin color |
| Flyscreen | Stainless steel mesh available Rolling/folding flynet |
| Perforance parameters | Double glass window and door Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450mm Based on AS2208 &IGCC/IGMA |
| Guarantee Period | 10 Years |
| Application | Available for housing series; residentials series Commerical series |
| Subframes | Meet double brick;brick vaneer;concrete Wooden frame;steel structure |
| Wall Type | Angels; timber reveals; sub-head; sub sills available |
| Sample lead time | 10 days |
| Delivery Time on mass order | 25days for standard color; 38 days for customized color(20GP) |
Certificate
Finished projects
1. K.A.K.O Building
2. Yancheng Riel International Community
3. Russia Caspian Sea Villa
4. MIXXO Shopping Mall
5. Taizhou Villa
6. Shanghai Western Garden
We have been cooperating with many projects in U.S. New zealand and Canada.Our clients are very satisfied with our aluminium windows and doors whether they are used in the housing series, residentials series or commerical series!
Please don't hesistate to show us your desired window and door, we will help you find the one that matches you best.
Profile
GLASS
Color
More Design
Packing and Loading
Small goods will be packed on steel pallet or plywood box. Profile surface will have plastic film cover, aluminum window and door corner would be protected by paper corner gloves. Packing belt will hold goods fasten on the pallet. Stretch wrap will be used for cover whole steel pallet.
Welcome to Shanghai MINYE Decoration Co., Ltd. Our company established in 2002, depends on high-quality products under scientific principles, we rising up to the leading enterprise of aluminum & UPVC window & door for almost 15 years. MINYE started export and global trade 8 years ago, it is 6th year named as gold supplier on ALIBABA global sourcing. Our company own factory of ourselves. We can give you a really good price, good quality, and on time delivery.
FAQ
Q:Are you a Trading Company or a Factory?
MINYE is 100% real factory and has been verified by SGS Group and here is a VCR for your Ref https://shanghaimy.en.alibaba.com
Q: How about your Production Time?
About have 25-30 working days ,it depends on the windows and doors types and profile(like color,special requires)
Q: What about your MOQ?
For window and door,the Mini order quantity is 30 Square meters.
Q: Do you accept customized design and size?
Yes,sure,windows and doors are high customized goods,So the size and design up to you.
Q: What's your payment terms?
T/T,L/C,Trade assurance,Paypal all are available
Q: What is your color available?
MINYE Standard Colors have Black,White,Dark grey,Nature,Coffee .Other RAL Colors also available but need more time and a bit cost.
Q:What kinds of hardware mostly?
CHINA BRAND:HOPO,KINLONG,PAGANI,YAER,CHUANG
GERMANY BRAND:ROTO,SIEGENIA
ITALY BRAND:SAVIO,GIESSE
Q:What is profile available in your factory?
Aluminum(Non-Thermal Break and Thermal Break),PVC(UPVC&vinyl),Aluminum Cladding wood;
Q:Do you provide Sample?
Sure,it it available,But need charge for sample cost and freight fee.
10 years warranty for whole product, 10 years warranty for German brand hardware,10 years warranty for Austrian brand glazing and 10 years warranty for U.S.A. silicon. Life time service.
